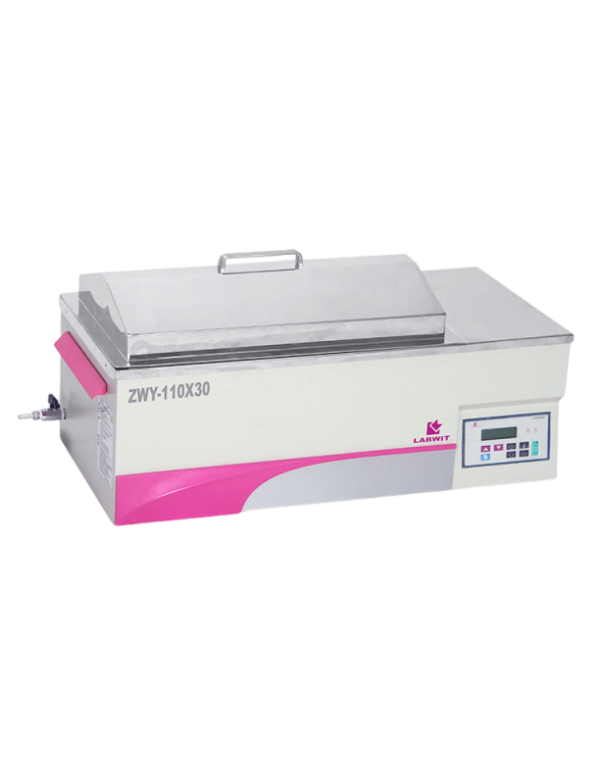

Labwit Water Bath, Reciprocal Shaking 30L ZWY-110X30
The latest ZWY-110X series reciprocal water bath shaker combines unmatched reliability and durability. It delivers superior temperature control and uniformity with a smooth shaking motion. Bath temperature is controlled to an accuracy of ±0.1°C by a P.I.D microprocessor controller for optimum reproducible bath conditions. Dual thermostats provide optimum protection for your work and water bath. The steeply gabled lid and inward-sloped tank rim allow condensate to drain neatly back into the bath, preventing condensate from dripping onto the samples.
 |  |
| Model | ZWY-110X30 | ZWY-110X50 |
|---|---|---|
| Volume (L) | 30 | 50 |
| Gable Lid Included | Yes | Yes |
| Shaking Mode | Reciprocal | |
| Temperature Range (°C) | Ambient-99.9°C | |
| Temperature Accuracy (°C) | ± 0.1°C | |
| Temperature Uniformity (°C) | ±0.2 @ 37°C 100rpm | |
| Timer | 1 minute to 500 hoursv | |
| Stroke (mm) | 16 (Default setting), 24 | |
| Speed Range (rpm) | 20-180 | |
| Tray (mm) (WxD) | 434×256 | 494×316 |
| Capacity * | *Glass dimensions may reduce max. capacity | |
| 50 ml | 15 | 24 |
| 100 ml | 15 | 24 |
| 250 ml | 11 | 15 |
| 500 ml | 6 | 11 |
| 1000 ml | – | 6 |
| Inner Dimensions (mm) (WxDxH) | 508x300x200 | 568x360x250 |
| Exterior Dimensions (mm) (WxDxH) | 795x360x380 | 855x420x430 |
| Packing Dimensions (mm) (WxDxH) | 865x430x520 | 925x490x590 |
| Net/Gross Weight (kg) | 29/40 | 33/49 |
| Power (W) | 1600 | 2000 |
| Electricity | 220-240V 50/60 Hz | |
| Approval | CE, ISO | |
| P6014 | Tray for ZWY-110X30, S/S ※ |
|---|---|
| P6015 | Tray for ZWY-110X50, S/S |
| P7015 | Universal Tray for ZWY-110X30 |
| P7016 | Universal Tray for ZWY-110X50 |
| P8001 | T Clamp, S/S, for 50ml Flask, with Spring Retainer |
| P8002 | T Clamp, S/S, for 100ml Flask, with Spring Retainer |
| P8013 | T Clamp, S/S, for 150ml Flask, with Spring Retainer |
| P8003 | T Clamp, S/S, for 250ml Flask, with Spring Retainer |
| P8014 | T Clamp, S/S, for 300ml Flask, with Spring Retainer |
| P8004 | T Clamp, S/S, for 500ml Flask, with Spring Retainer |
| P8005 | T Clamp, S/S, for 750ml Flask, with Spring Retainer |
| P8006 | T Clamp, S/S, for 1000ml Flask, with Spring Retainer |
| P8010 | Tube Rack S/S |
| P8011 | Tube Rack ABS Plastic |
| P8012 | Clamp for 96 Well Plate, S/S |
| P8015 | Gable Lid for ZWY-110X30 |
| P8016 | Gable Lid for ZWY-110X50 |
Description
The latest ZWY-110X series reciprocal water bath shaker combines unmatched reliability and durability. It delivers superior temperature control and uniformity with a smooth shaking motion. Bath temperature is controlled to an accuracy of ±0.1°C by a P.I.D microprocessor controller for optimum reproducible bath conditions. Dual thermostats provide optimum protection for your work and water bath. The steeply gabled lid and inward-sloped tank rim allow condensate to drain neatly back into the bath, preventing condensate from dripping onto the samples.
| |
Features
▶ Solid electric drive mechanism provides uniform and quiet agitation and enables continuous 24 hour operation.
▶ Water bath temperature is monitored and controlled over the entire range with an accuracy of ±0.1°C with P.I.D temperature controller.
▶ Easy-to-read LCD digital display provides a user-friendly interface which helps minimize errors in establishing running conditions.
▶ Non-volatile memory retains preset parameters during a power failure and restarts unit automatically after the power is restored.
▶ Heat loss and evaporation is minimized with the use of finely electro-polished stainless steel gabled lid cover, standard on ZWY series units.
▶ High quality #304 stainless steel for excellent durability of interiors and its parts.
▶ Standard stainless steel tray, without clamps.
