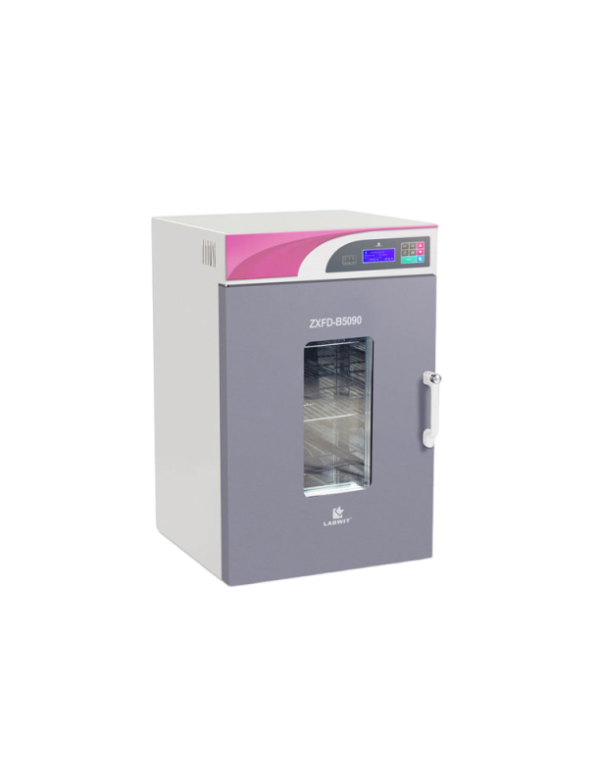

Labwit Bottom Heating Ovens 250L ZXFD-B5250

Specifications of ZXFD (Bottom Heating)
Model	ZXFD-B5090	ZXFD-B5140	ZXFD-B5250	ZXFD-B5430	ZXFD-B5600
Volume (L)	90	140	250	430	600
Heating Mode	Bottom Heating
Programmable Control (9 segments/18 steps)	Yes, Standard
Temperature Range (°C)	A+5 to 200
Temperature Accuracy (°C)	0.1
Temperature Uniformity (%)	± 2.5% (@max temperature)
Display	LCD
Alarm	Enabled
Timer (min)	1-999
Settings	Digital
Grids Included	2 (Max 4)	2 (Max 5)	2 (Max 6)	2 (Max 8)	2 (Max 8)
Grid Size (mm) (WxD)	389 × 393	413 × 493	493 × 595	596 × 694	725 × 789
Distance Between Grids (mm)	90	95	105	105	110
Chamber Dimensions (mm) (WxDxH)	400 x 430 x 485	500 x 455 x 600	600 x 535 x 750	700 x 635 x 950	800 x 766 x 1000
Exterior Dimensions (mm) (WxDxH)	585 x 610 x 895	685 x 635 x 1010	790 x 720 x 1240	890 x 820 x 1440	990 x 950 x 1495
Packing Dimensions (mm) (WxDxH)	655 x 680 x 1055	755 x 705 x 1170	860 x 790 x 1400	960 x 890 x 1600	1060 x 1020 x 1655
Net/Gross Weight (kg)	55/81	80/115	108/145	170/210	210/255
Power (W)	1500	2100	2500	2700	2900
Electricity	220-240V 50/60 Hz
Approval	CE, ISO

P9025	Grid Plate for ZXFD-B5090, S/S
P9026	Grid Plate for ZXFD-B5140, S/S
P9027	Grid Plate for ZXFD-B5250, S/S
P9028	Grid Plate for ZXFD-B5430, S/S
P9029	Grid Plate for ZXFD-B5600, S/S
	※ S/S: Stainless Steel

ZXFD-B5250

Description

The LABWIT forced air drying ovens are engineered for your daily work, from routing simple glassware drying sterilization applications up to 200°C or 300°C, to the complex, controlled heating applications, for example, aging, bonding, curing, heat treat annealing, stress relieving, burn-in, hardening test purposes.

LABWIT offers the ZXFD-series Bottom heating designed to provide accurate temperature uniformity, with minimized temperature overshoot. For all 200°C models, the ovens are equipped with LCD control panel and can be programmed to run up to 9 different programs with 18 steps of temperatures and time segments.

Features

▶ Forced-air convection and three-dimensional heating systems ensure air circulation and heat distribution.

▶ Options of back or bottom heating models, up to 200°C and 300°C.

▶ PID Microprocessor controller with 9 segments and 18 steps, only on 200°C models.

▶ Large LCD display on 200°C models, and LED display on 300°C models.

▶ Argon-filled multiple glazed tempered safety glass window, 2 glazing for 200°C models and 3 glazing for 300°C models, optimizes sample monitoring as well as minimize heat losses.

▶ Electro-polished stainless steel inner chambers and round corners for easy cleaning and better air circulation.

▶ Safe protections: over-temperature limit protection, separate over-current fuses, trip switching protection over electric leakage.

▶ Non-volatile memory retains pre-set parameters in case of power interruption.

▶ Standard wheel casters available on all models of 210L and above in volume.

▶ Adjustable electro-polished stainless-steel shelving provides air flow around samples for uniformed tempering and allow for easy cleaning.

▶ 2 grids included as standard.

Air Tight Door

▶ Hermetic door closure system for optimal air tightness and minimal heat loss.

▶ “Push & Catch” design, easy to grip and operate.

Adjustable Air Vent

▶ Adjustable air vent for discharge of humidity evaporation.

▶ Adjusting knob located on side wall for easy access.

▶ Air vent located on the back wall.

Convenient Working Environment

▶ Complete stainless steel inner chamber.

▶ Low heat dissipation due to 50mm high density insulation.

▶ 2 shelves included as standard.
