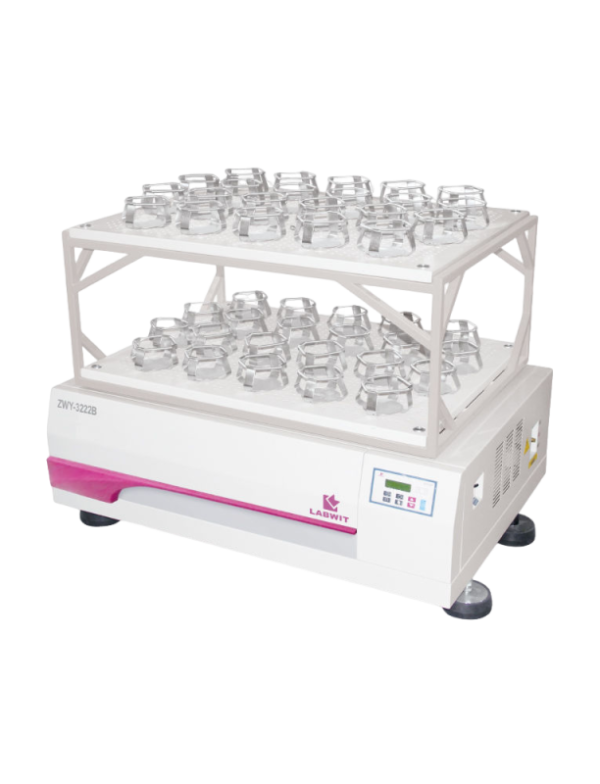

LABWIT floor shakers are designed to uniformly shake more than a hundred samples 24/7 under extreme environmental conditions, like in warm and cold rooms (5 to 50°C, non-condensation). The powerful drive mechanism guarantees reliable, smooth and quiet orbital shaking without vibration, even at high speeds up to 300 rpm. They are ideal for mass production, especially the two platform models ZWY-3222B and ZWY-B3222, which are widely used in biochemical, fermentation, and pharmaceutical experiments for large volumes or a lot of small flasks.
| Model | ZWY-322B | ZWY-3222B | ZWY-322C | ZWY-B3222 |
|---|---|---|---|---|
| Action Mode | Orbit | |||
| Stroke (mm) | Ø35 | Ø50 | ||
| Speed (rpm) | 30-300 | |||
| Speed Variation (rpm) | ±1 | |||
| Timer | 1 minute to 500 hours | |||
| Number of Trays | 1 | 2 | 1 | 2 |
| Tray (mm) (WxD) | 940×700 | |||
| Flasks Configurations* | *Glass dimensions may reduce max. capacity | |||
| 50 ml | 86 | 172 | 86 | 172 |
| 100 ml | 86 | 172 | 86 | 172 |
| 250ml | 53 | 106 | 53 | 106 |
| 500ml | 37 | 74 | 37 | 74 |
| 750ml | 29 | 58 | 29 | 58 |
| 1000ml | 22 | 44 | 22 | 44 |
| 2000ml | 12 | – | 12 | – |
| 3000ml | 11 | – | 11 | – |
| 5000ml | 7 | – | 7 | – |
| Tube Rack S/S | 13 | 26 | 14 | 28 |
| 96 Well Plate | 34 | 68 | 42 | 84 |
| Exterior Dimensions (mm) (WxDxH) | 1115x840x455 | 1115x840x815 | 1115x840x455 | 1115x840x815 |
| Packing Dimensions (mm) (WxDxH) | 1210x920x690 | 1210x920x1040 | 1210x920x690 | 1210x920x1040 |
| Net/Gross Weight (kg) | 280/335 | 310/370 | 280/335 | 310/370 |
| Power (W) | 300 | |||
| Electricity | 220-240V 50/60 Hz | |||
| Approval | CE, ISO | |||
| Accessories | |
|---|---|
| P5006 | Single Layer Shaking Frame for ZWY-322B/3222B, Stl S/C |
| P5008 | Single Layer Shaking Frame for ZWY-322C/ B3222, Stl S/C |
| P6020 | Tray for ZWY-322B/3222B Stl S/C |
| P6021 | Tray for ZWY-322C/B3222 Stl S/C |
| P7019 | Universal Tray for ZWY-322B/3222B |
| P7020 | Universal Tray for ZWY-322C/B3222 |
| P7022 | Universal Tray for All Horizontal Model, 1/2 Pcs |
| P8001 | T Clamp, S/S, for 50ml Flask, with Spring Retainer |
| P8002 | T Clamp, S/S, for 100ml Flask, with Spring Retainer |
| P8013 | T Clamp, S/S, for 150ml Flask, with Spring Retainer |
| P8003 | T Clamp, S/S, for 250ml Flask, with Spring Retainer |
| P8014 | T Clamp, S/S, for 300ml Flask, with Spring Retainer |
| P8004 | T Clamp, S/S, for 500ml Flask, with Spring Retainer |
| P8005 | T Clamp, S/S, for 750ml Flask, with Spring Retainer |
| P8006 | T Clamp, S/S, for 1000ml Flask, with Spring Retainer |
| P8007 | T Clamp, Spring S/S, for 2000ml Flask, with Spring Retainer |
| P8008 | T Clamp, Spring S/S, for 3000ml Flask, with Spring Retainer |
| P8009 | T Clamp, Spring S/S, for 5000ml Flask, with Spring Retainer |
| P8010 | Tube Rack S/S ※ |
| P8011 | Tube Rack ABS Plastic |
| P8012 | Clamp for 96 Well Micro Plate, S/S |
| P8017 | Sticky Mat, 20 x 20cm |
Description
LABWIT floor shakers are designed to uniformly shake more than a hundred samples 24/7 under extreme environmental conditions, like in warm and cold rooms (5 to 50°C, non-condensation). The powerful drive mechanism guarantees reliable, smooth and quiet orbital shaking without vibration, even at high speeds up to 300 rpm. They are ideal for mass production, especially the two platform models ZWY-3222B and ZWY-B3222, which are widely used in biochemical, fermentation, and pharmaceutical experiments for large volumes or a lot of small flasks.
| | |
Features
▶ The microprocessor controller maintains the precision of speed control.
▶ Large LCD presents all actual and set parameters.
▶ Password protection of all parameters against unauthorised change.
▶ Operating parameter retention after power failure.
▶ Electronic timer up to 500 hours or continuous operation.
▶ Soft start and stop function.
▶ Patented over-speed protection minimises the risk of uncontrolled shaking.
▶ Two platform models provide increased capacity; accept 50 ml to 1 L flasks on the lower level or up to 5 L if without the top tray.
▶ Powerful brushless AC induction motor with quadruple counterbalanced drive system.
▶ Superior cast iron and stainless steel critical components.
