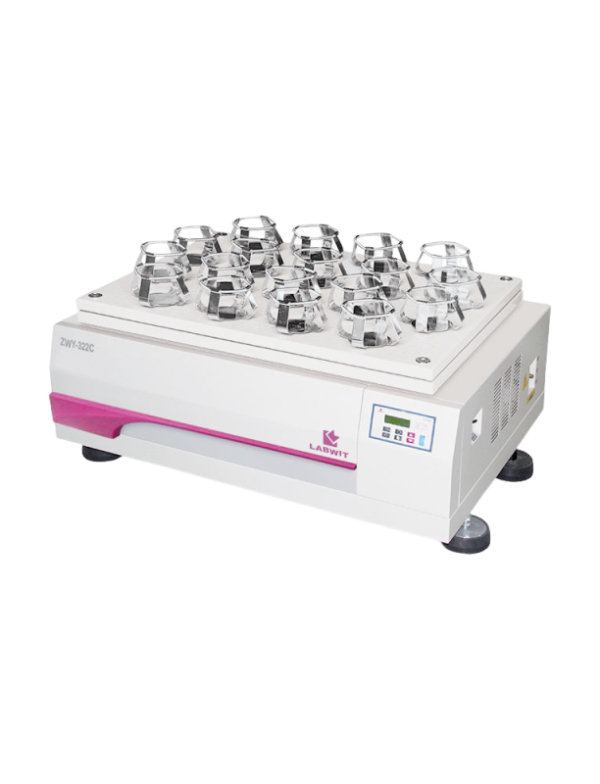

Labwit Orbital Floor Shaker ZWY-322C

Model	ZWY-322B	ZWY-3222B	ZWY-322C	ZWY-B3222
Action Mode	Orbit
Stroke (mm)	Ø35		Ø50
Speed (rpm)	30-300
Speed Variation (rpm)	±1
Timer	1 minute to 500 hours
Number of Trays	1	2	1	2
Tray (mm) (WxD)	940×700
Flasks Configurations*	*Glass dimensions may reduce max. capacity
50 ml	86	172	86	172
100 ml	86	172	86	172
250ml	53	106	53	106
500ml	37	74	37	74
750ml	29	58	29	58
1000ml	22	44	22	44
2000ml	12	–	12	–
3000ml	11	–	11	–
5000ml	7	–	7	–
Tube Rack S/S	13	26	14	28
96 Well Plate	34	68	42	84
Exterior Dimensions (mm) (WxDxH)	1115x840x455	1115x840x815	1115x840x455	1115x840x815
Packing Dimensions (mm) (WxDxH)	1210x920x690	1210x920x1040	1210x920x690	1210x920x1040
Net/Gross Weight (kg)	280/335	310/370	280/335	310/370
Power (W)	300
Electricity	220-240V 50/60 Hz
Approval	CE, ISO

	Accessories
P5006	Single Layer Shaking Frame for ZWY-322B/3222B, Stl S/C
P5008	Single Layer Shaking Frame for ZWY-322C/ B3222, Stl S/C
P6020	Tray for ZWY-322B/3222B Stl S/C
P6021	Tray for ZWY-322C/B3222 Stl S/C
P7019	Universal Tray for ZWY-322B/3222B
P7020	Universal Tray for ZWY-322C/B3222
P7022	Universal Tray for All Horizontal Model, 1/2 Pcs
P8001	T Clamp, S/S, for 50ml Flask, with Spring Retainer
P8002	T Clamp, S/S, for 100ml Flask, with Spring Retainer
P8013	T Clamp, S/S, for 150ml Flask, with Spring Retainer
P8003	T Clamp, S/S, for 250ml Flask, with Spring Retainer
P8014	T Clamp, S/S, for 300ml Flask, with Spring Retainer
P8004	T Clamp, S/S, for 500ml Flask, with Spring Retainer
P8005	T Clamp, S/S, for 750ml Flask, with Spring Retainer
P8006	T Clamp, S/S, for 1000ml Flask, with Spring Retainer
P8007	T Clamp, Spring S/S, for 2000ml Flask, with Spring Retainer
P8008	T Clamp, Spring S/S, for 3000ml Flask, with Spring Retainer
P8009	T Clamp, Spring S/S, for 5000ml Flask, with Spring Retainer
P8010	Tube Rack S/S ※
P8011	Tube Rack ABS Plastic
P8012	Clamp for 96 Well Micro Plate, S/S
P8017	Sticky Mat, 20 x 20cm

ZWY-322C

Description

LABWIT floor shakers are designed to uniformly shake more than a hundred samples 24/7 under extreme environmental conditions, like in warm and cold rooms (5 to 50°C noncondensation). The powerful drive mechanism guarantees reliable, smooth, and quiet orbital shaking without vibration, even at high speeds up to 300 rpm. They are ideal for mass production, especially the two platform models ZWY-3222B and ZWY-B3222, which are widely used in biochemical, fermentation, and pharmaceutical experiments for large volumes or a lot of small flasks.

Features

▶ The microprocessor controller maintains the precision of speed control.

▶ Large LCD display presents all actual and set parameters.

▶ Password protection of all parameters against unauthorised change.

▶ Operating parameter retention after power failure.

▶ Electronic timer up to 500 hours or continuous operation.

▶ Soft start and stop function.

▶ Patented over-speed protection minimises the risk of uncontrolled shaking.

▶ Two platform models provide increased capacity; accept 50 ml to 1 L flasks on the lower level or up to 5 L if without the top tray.

▶ Powerful brushless AC induction motor with quadruple counterbalanced drive system.

▶ Superior cast iron and stainless steel critical components.
