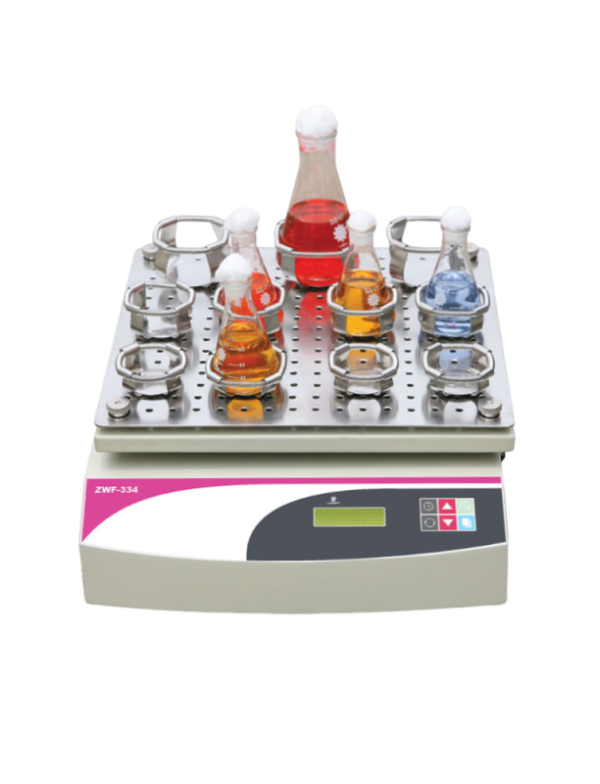

▶ The ZWF-334 lab scale platform shaker has a powerful yet quiet shaking mechanism that has been designed for problem-free continuous use. This unit provides a versatile linear shaking action with a unique 4-level stroke adjustment from 20, 24, 30 to 40mm, ideal for most extracting applications.
▶ Speed is fully variable from 30 to 300 rpm and is set digitally for consistency. The speed is microprocessor-controlled and accurately maintained even over long runs. The built-in timer can be set from 0 to 500 hours. After the timer has counted down, the shaker stops and sounds an alert. The flask clamp tray is fitted as standard, but it can be interchanged with a non-slip mat tray or cradle platform.
Benchtop Shaker
| Model | ZWF- 334 | |||||
|---|---|---|---|---|---|---|
| Action Mode | Reciprocal | |||||
| Speed Range (/min) | 30-300 strokes | |||||
| Speed Variation (/min) | ±1 stroke | |||||
| Stroke | 20, 24, 30, 40 mm | |||||
| Tray Dimensions (mm) | 330×350 | |||||
| Accessory Included | Clamp Tray | |||||
| Timer | 1 minute to 500 hours | |||||
| Maximum Load (kg) | 7.5 | |||||
| Overall Dimensions (mm) (WxDxH) | 400x350x160 | |||||
| Packing Dimensions (mm) (WxDxH) | 480x430x400 | |||||
| Net / Gross Weight (kg) | 21/31 | |||||
| Safety Features | Non-volatile Memory, Power-off Recovery, Timer | |||||
| Power (W) | 50 | |||||
| Electricity | 220-240V 50/60 Hz | |||||
| Approval | CE, ISO | |||||
| Clamp Tray | 50ml | 100ml | 250ml | 500ml | 750ml | 1000ml | 2000ml | 3000ml | 5000ml | Tube Rack S/S | 96 Well Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P6016 | 24 | 17 | 9 | 7 | – | – | – | – | – | 3 | 6 |
| * Glass dimensions may reduce max. capacity | |||||||||||
| Accessories | |
|---|---|
| P6016* | Tray for ZWY-304/ZWF-334, S/S ※ Clamp Tray |
| P6017 | Tray for ZWY-304/ZWF-334, S/S Bar Trayx1, Rubber Barx4, Knobx8 |
| P6018 | Tray for ZWQ-344, Stl S/C# Trayx1, Springx4, Rubber Matx1 |
| P7017 | Universal Spring Tray for ZWY-304/ZWF-334 |
| P8001 | T Clamp, S/S, for 50ml Flask, with Spring Retainer |
| P8002 | T Clamp, S/S, for 100ml Flask, with Spring Retainer |
| P8013 | T Clamp, S/S, for 150ml Flask, with Spring Retainer |
| P8003 | T Clamp, S/S, for 250ml Flask, with Spring Retainer |
| P8014 | T Clamp, S/S, for 300ml Flask, with Spring Retainer |
| P8004 | T Clamp, S/S, for 500ml Flask, with Spring Retainer |
| P8010 | Tube Rack S/S |
| P8011 | Tube Rack ABS Plastic |
| P8012 | Clamp for 96 Well Micro Plate, S/S |
| P8017 | Sticky Mat, 20 x 20cm |
Description
▶ The ZWF-334 lab scale platform shaker has a powerful yet quiet shaking mechanism that has been designed for problem-free continuous use. This unit provides a versatile linear shaking action with a unique 4-level stroke adjustment from 20, 24, 30 to 40mm, ideal for most extracting applications.
▶ Speed is fully variable from 30 to 300 rpm and is set digitally for consistency. The speed is microprocessor-controlled and accurately maintained even over long runs. The built-in timer can be set from 0 to 500 hours. After the timer has counted down, the shaker stops and sounds an alert. The flask clamp tray is fitted as standard, but it can be interchanged with a non-slip mat tray or cradle platform.
Benchtop Shaker
| |
