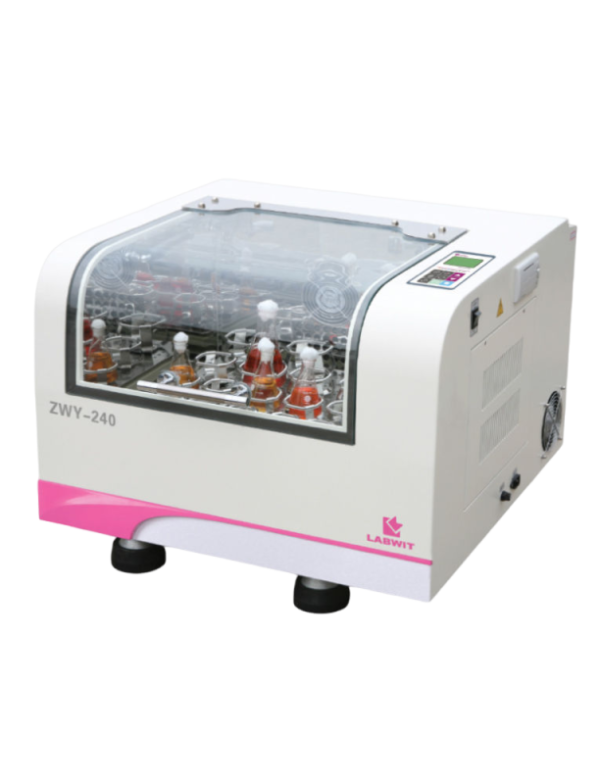

Labwit Economic Benchtop Shaking Incubators 69L ZWY 240/200
ECONOMIC BENCHTOP
34, 63, 69 Litres Capacity
ZWF-200 | ZWY-240 | ZWY-200D
The benchtop orbital shaking incubators provided by LABWIT offer for small to medium capacity conditions of time, temperature and orbital agitation for the growth of biological organisms. These microprocessor controlled shakers have a number of advanced features that are really unique in bench top models, such as cooling capacity, stepless shaking diameter adjustment.
LABWIT shaking incubators are lab workhorses and provide “set and forget” programmable operating conditions and precise temperature performance for a variety of molecular biology techniques. The inner chamber is clearly visible from all angles across the room. The audible and visual alarms will alert the operator for set point deviations. The refrigerated models use CFC-free refrigerant, ozone layer friendly.
 |  |  |  |
| Model | ZWF-200 | ZWY- 240 | ZWY-200D |
|---|---|---|---|
| Volume (L) | 69 | 69 | 69 |
| Shaking Speed (rpm) | 30-240 | 30-400 | 30-600 |
| Stroke | 40mm | Ø1-50mm Stepless Adjustment | |
| Shaking Mode | Reciprocal | Orbital | |
| Tray (mm) (WxD) | 435×420 | 400×370 | |
| Temperature Range (°C) | 4°C to 60°C | ||
| Temperature Accuracy (°C) | ±0.1°C | ||
| Temperature Uniformity (°C) | ±1°C @ 37°C | ||
| Timer | 1 minute to 500 hours | ||
| Flask Configurations | *Glass dimensions may reduce max. capacity | ||
| 50ml | 25 | 23 | |
| 100ml | 25 | 23 | |
| 250ml | 15 | 12 | |
| 500ml | 10 | 9 | |
| 750ml | 9 | 7 | |
| 1000ml | 5 | ||
| Tube Rack S/S | 3 | ||
| 96 Well Plate | 8 | ||
| Inner Dimensions (mm) (WxDxH) | 490x470x320 | ||
| Exterior Dimensions (mm) (WxDxH) | 730x740x560 | ||
| Packing Dimensions (mm) (WxDxH) | 810x850x760 | ||
| Net/Gross Weight (kg) | 100/132 | ||
| Power (W) | 700 | ||
| Electricity | 220-240V 50/60 Hz | ||
| Approval | CE, ISO | ||
- Various chamber sizes available from 34L, 63L to 69L
- Smooth and easy to clean design with tempered observation glass window.
- Inner chamber and tray from electro-polished stainless steel.
- Special low noise induction motor system enables high rotation speed up to 400rpm or 600rpm.
- Patented driver system allows stroke continuous adjustment from 1 to 50 mm.
- AC inductive motor, brushless and maintenance free.
- Auto defrosting system, ensuring long terms non frosting operation with low-temperature setpoints.
- The combination of high speed and small diameter make ZWY-103D, ZWY-100D & ZWY-200D suitable for many applications involving microtitre plates.
- Microprocessor control with large LCD screen, showing set and actual parameters.
- Password protection against unauthorized change of parameters.
- Audible and visual alarms on over temperature and motor overheating.
- Soft start and smooth acceleration after lid opening.
- Timer up to 500 hours and continuous mode.
- Predrilled standard tray included, without clamps.
