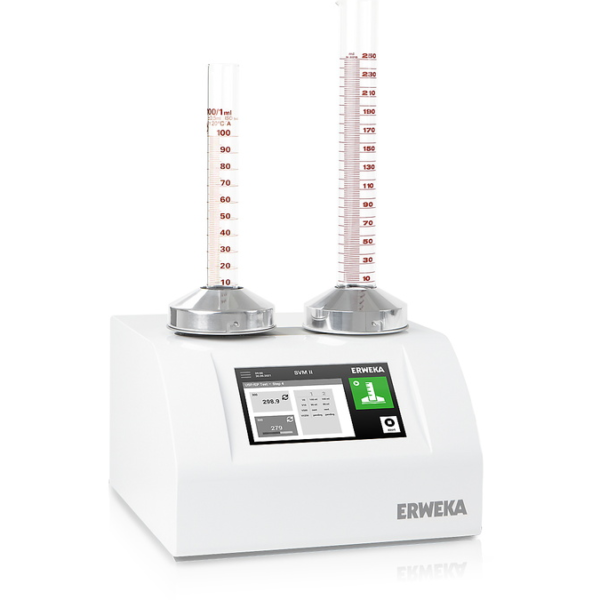

One Device, 5 Variations

The SVM II offers the same flexibility as its 5 predecessor models. It can test for USP method 1, 2 and 3 and can be equipped with either one or two test stations of the same method (USP 1, 2) or a combination of both. USP 3 comes with separate attachment parts and can be installed on station one or two and used with any SwitchPlate. Optional changing from one variant to another can be done by the user within minutes. This makes the SVM II the most flexible tapped density tester we ever built.

Intelligent SwitchPlate System

With the innovative SwitchPlate system, the SVM II is as flexible as ever before. Available SwitchPlates:

• USP 1 with 1 station
• USP 1 with 2 stations
• USP 2 with 1 station
• USP 2 with 2 stations
• 2 station combination with USP 1 and USP 2

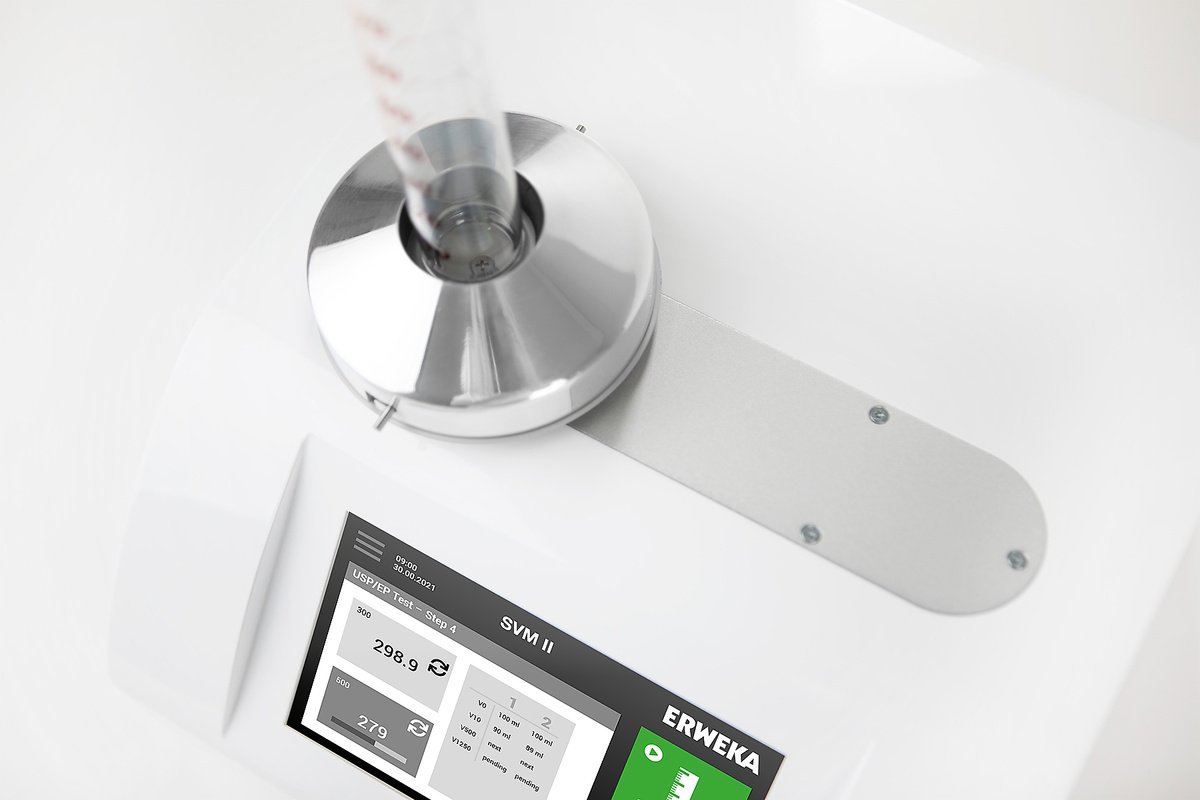

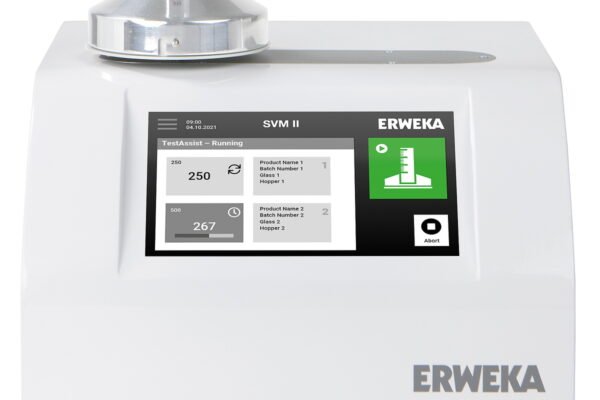

Modern Touch Interface With TestAssist

The SVM II is controlled by a high resolution touch display with our modern ERWEKA user interface. With its innovative TestAssist, the user is guided through the tapped density testing process from start to finish. The TestAssist automatically computes Tapped Density, Hausner Ratio and Compressibility Index – all the user has to do is read the values from the cylinder and enter them when asked. This reduces errors and delivers results as fast as possible. SVM II is also equipped with the DirectHelp feature – always giving help and guidance at the touch of a button.

1, 2, Test!

The touch interface of the SVM II focuses the user on the most important task to be done with the SVM II: tapped density testing. The central part is the TestAssist, an intelligent assistant with real time feasibility checks that provides support and guarantees the conformity of the entered parameters according to USP/EP/JP. Tapped density testing thus becomes simple and safe. But we didn‘t stop at TestAssist – all other functions, such as the control panel, the qualification menu or the service menu, are also designed to connect user and hardware as quickly as possible.
