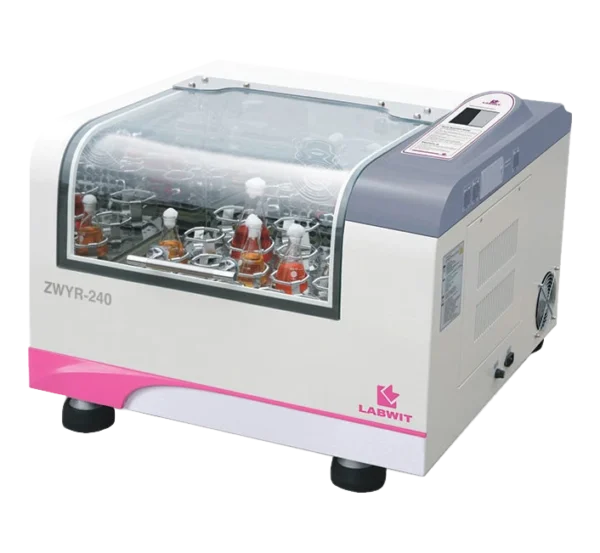

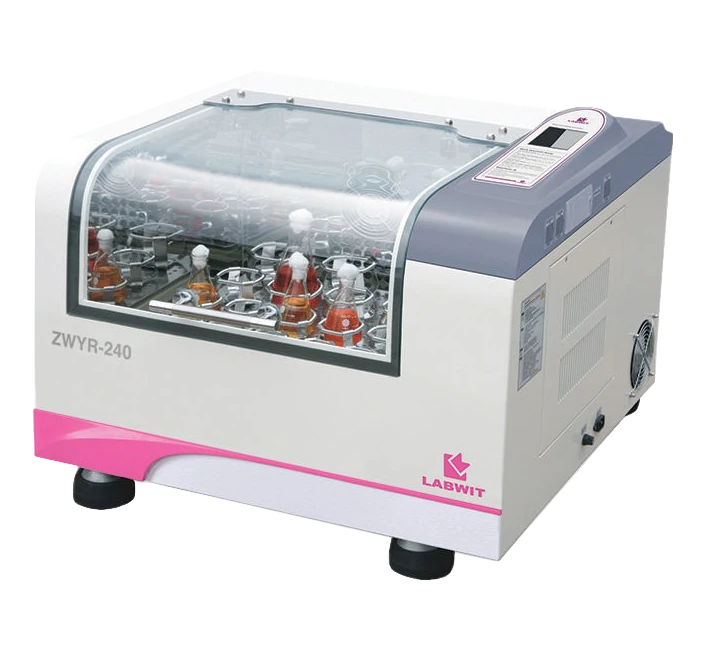

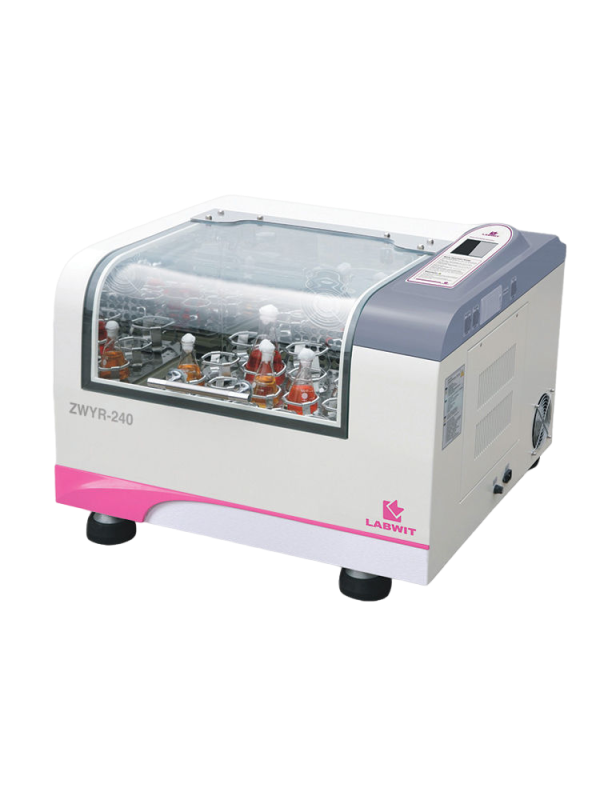

Labwit Premium Benchtop Shaking Incubator 69L ZWYR-240
PREMIUM BENCHTOP
69 Litres Capacity
This new range premium benchtop shaking incubators provided by LABWIT offer conditions of time, broad temperature and orbital or reciprocal agitation capabilities for meeting comprehensive requirement of the growth of biological organisms.
The P.I.D microprocessor-controlled shakers have a number of advanced features that are unique in bench top models. These unique benchtop models with shaking diameter stepless adjustable from 1-50mm provide unmatched flexibility for meeting comprehensive application requirements. The sophisticated PID controller provides these units with choices of not only constant controlling one fixed temperature and speed, but also programmed controlling with a series of “ramps and soaks” segments on time basis.
For data recording, the units are equipped with a built-in thermo printer as standard, so that operators could check how the performance parameters vary according to specified process without having to be on site.
| Model | ZWYR-200D | ZWYR-240 | ZWFR-200 |
|---|---|---|---|
| Control | P.I.D Microprocessor | ||
| Control Mode | Fix Value or Program (up to 9 Segments) | ||
| Control Panel | 4.3’’ LCD Touch Screen | ||
| Volume (L) | 69 | ||
| Shaking Speed (rpm) | 30-600 | 30-400 | 30-240 |
| Stroke (mm) | 1-50 Stepless Adjustment | ||
| Shaking Mode | Orbital | Reciprocal | |
| Tray (mm) (WxD) | 400×370 | 435×420 | |
| Ambient Temperature(°C) | 5-25 | ||
| Temperature Range(°C) | 4-60 | ||
| Temperature Accuracy(°C) | 0.1 | ||
| Temperature Uniformity(°C) | ±1°C @ 37°C | ||
| Timer | 1 to 9999 mins | ||
| Inner Dimensions (mm) (WxDxH) | 490x470x320 | 490x470x335 | 490x470x320 |
| Exterior Dimensions (mm) (WxDxH) | 774x740x610 | ||
| Packing Dimensions (mm) (WxDxH) | 860x850x760 | ||
| Net/Gross Weight (kg) | 100/132 | ||
| Power (W) | 700 | ||
| Electricity | 220-240V 50/60 Hz | ||
| Approval | CE, ISO | ||
| Security | Over-temperature Protection, Compressor Overload Protection, Electrical Leakage Protection | ||
| Additional | Built-in Printer, RS485 COM Kit (Option) | ||
Premium Benchtop Shaking Incubators DatasheetDescription
Features
▶ 4.3’’ LCD 480×272 touchscreen panel clearly indicates all parameters in a single page display making it easy to change the operating parameters settings, even those multi-set points under programmable mode intuitively.
▶ P.I.D microprocessor controller provides unmatched versatility by enabling users to create personalized programs (with up to 9 segments, with cycling) to automate changes to function parameters.
▶ Inner chamber & tray from high graded #304 electro-polished stainless steel.
▶ Robust single eccentric counterbalanced drive-in cast-iron housing provides vibration and trouble-free operation with high shaking speed up to 600rpm.
▶ The versatility of the driving system allows stroke continuous adjustment from 1 to 50 mm for optimum oxygenation, nutrient mixing and agitation in from small to large flasks.
▶ Timer up to 9999 mins under fixed value control mode.
▶ Quality brushless AC inductive motor supports reliable, quiet and smooth shaking movements up to top speed.
▶ Auto-defrosting system, ensuring long-terms non-frosting operation with low temperature setpoints.
▶ Non-volatile memory saves settings during a power outage and automatically restarts the unit after power is restored.
▶ Audible and visual alarms on over temperature and motor-overheating, and automatic cut-off for the power.
▶ Soft start and smooth acceleration when the lid is closed after short opens.
▶ For data recording, the units are equipped with a built-in thermo-printer as standard, so operators could check how the performance parameters vary according to specified processes without having to be on site.
▶ Predrilled standard tray included, without clamps.
Related products
-

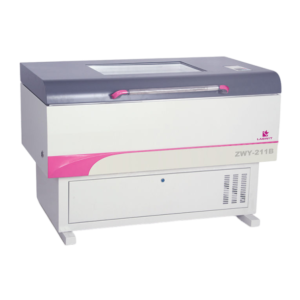

Labwit Economic Horizontal Shaking Incubator 300L ZWF-211
-
