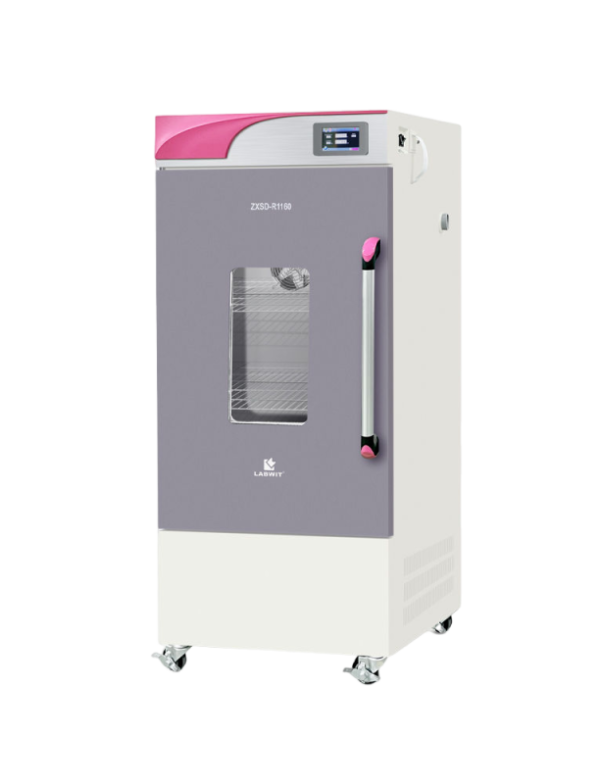

The premium BOD incubators of the ZXSD-R series from LABWIT are designed to meet a variety of advanced experimental needs, ranging from BOD determination to incubation of micro-organism cultures, preservation of samples, Drosophila incubation, and determination of enzymatic activities, to any applications that need incubation at close to ambient temperature or lower. It features a 4.3’’ TFT touch screen panel, which ensures clear indication as well as easy operations. Each of the four models has a wide temperature range from ambient -18 °C (minimum 4°C) to 65 °C and can be operated at a single user-defined temperature ,but can also be programmed with up to 9 different temperature segments within a time frame (18 steps). The (cooling) compressor runs continuously, and the control is done through a solenoid valve for more precise temperature control if temperatures lower than ambient are required.
| Model | ZXSD-R1160 |
|---|---|
| Volume (L) | 160 |
| Door Type | Outer door with observation window, and heat resistance glass inner door |
| Temperature Range (°C) | 4 to 65°C |
| Temperature Accuracy (°C) | ± 0.1°C |
| Temperature Uniformity (°C) | ±1.0 @ 37°C |
| Alarm | Enabled |
| Timer (min) | 0-9999 |
| Setting | Digital |
| Display | 4.3’’ TFT Touch Screen |
| Grid included | 2 (max 15) |
| Grid Size (mm) (WxD) | 410×456 |
| Inner Dimensions (mm) (WxDxH) | 500x500x650 |
| Exterior Dimensions (mm) (WxDxH) | 630x740x1380 |
| Packing Dimensions (mm) (WxDxH) | 700x810x1540 |
| Net/Gross Weight (kg) | 98/145 |
| Power (W) | 860 |
| Electricity | 220-240V 50/60 Hz |
| Approval | CE, ISO |
Description
The premium BOD incubators of the ZXSD-R series from LABWIT are designed to meet a variety of advanced experimental needs, ranging from BOD determination to incubation of micro-organism cultures, preservation of samples, Drosophila incubation, and determination of enzymatic activities, to any applications that need incubation at close to ambient temperature or lower. It features a 4.3’’ TFT touch screen panel, which ensures clear indication as well as easy operations. Each of the four models has a wide temperature range from ambient -18 °C (minimum 4°C) to 65 °C and can be operated at a single user-defined temperature but can also be programmed with up to 9 different temperature segments within a time frame (18 steps). The (cooling) compressor runs continuously, and the control is done through a solenoid valve for more precise temperature control if temperatures lower than ambient are required.
| | |
| | |
Features
▶ P.I.D. microprocessor ensures the precision of temperature control under both fixed value mode and programmable mode.
▶ 4.3’’ TFT touchscreen panel displays all parameters, easy operation and readout for all control modes.
▶ Three-dimensional airflow system ensures fast response and high uniformity of ±1.0°C @ 37°C.
▶ Sound cooling system with CFC-free refrigerant, ozone layer friendly.
▶ Automatic defrosting: only minimal ice formation and very low heat discharge into the working area occur; the unit can continue operating when defrosting.
▶ Real-time electronic timer from 0 to 9999 minutes.
▶ 3 steps adjustable fan speed, offering a more precisely controlled environment for incubation, without concerns of media or samples drying out.
▶ Non-volatile memory retains pre-set parameters in case of power interruption.
▶ Triple safety protections for samples, incubator and environment.
▶ Independent device for overtemperature, high current flow and electric leakage.
▶ Standard configurations: a double-layer tempered glass observation window in the outer door, an inner glass door, forced air circulation, a fluorescent lamp, a 50 mm test port and 2 grids, and a built-in printer.
▶ Optional UV Lamp, RS-232, RS-485 interface available.
