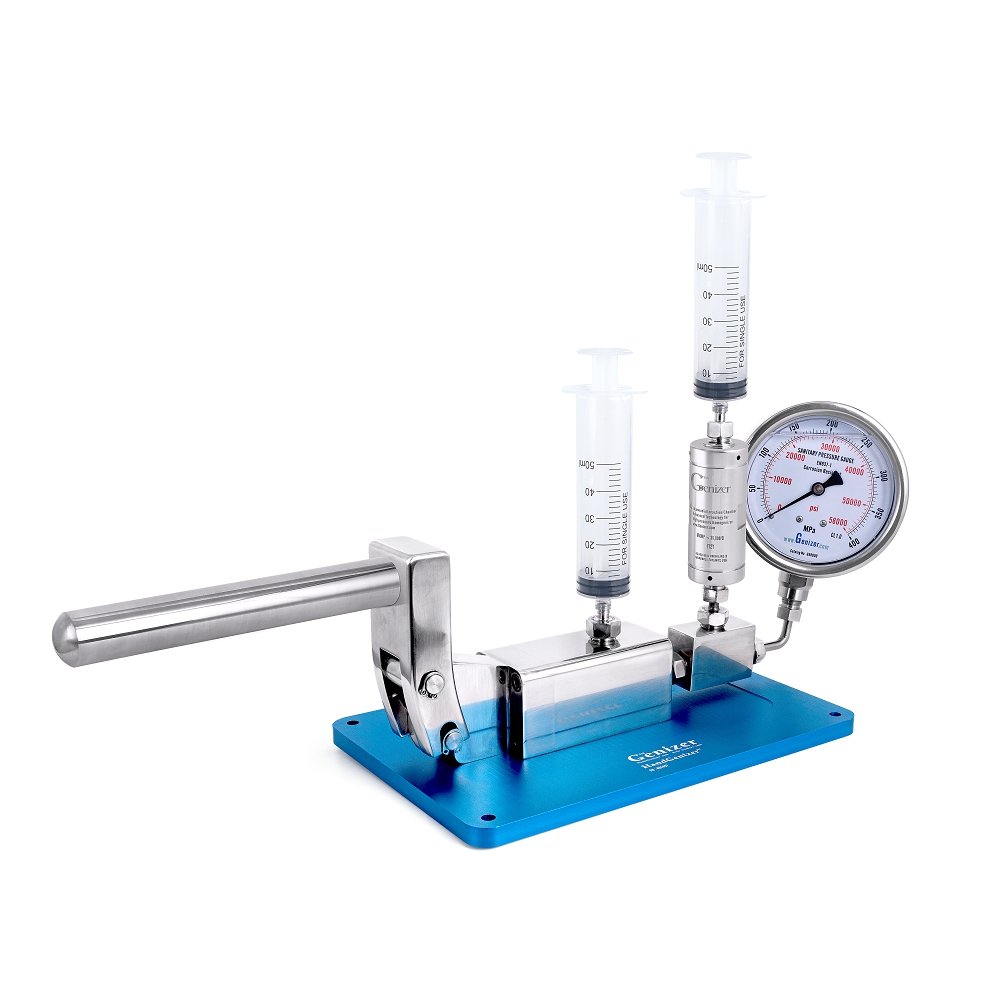

HandGenizer (Hand Drive High Pressure Homogenizer) - Equipmentor Scientific

Portable hand driven homogenizer for concept testing up to 30,000 psi.

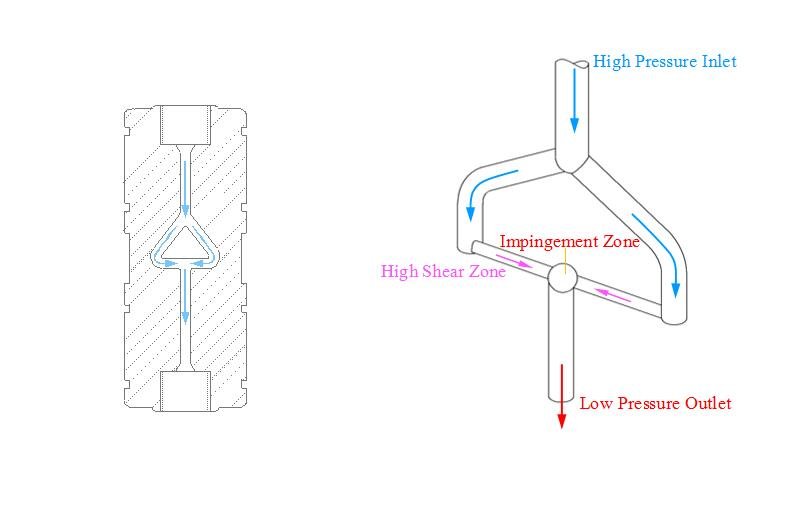

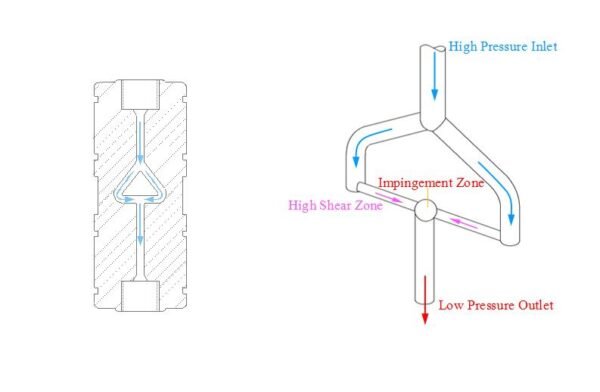

The HandGenizer’s mini pump has been designed specifically to provide the preferred pressure to the product stream. When the pump handle is lifted, a small quantity of the sample will be pulled into the mini-pump body. By shifting the pump handle fully down to make a high-pressure profile (maximum 30,000 psi) to the sample stream, this portion of the sample will enter the check valve and the Genizer Y-Type diamond interaction chamber. Finally, it exits the outlet to be collected.

Main Features of the NanoGenizer:

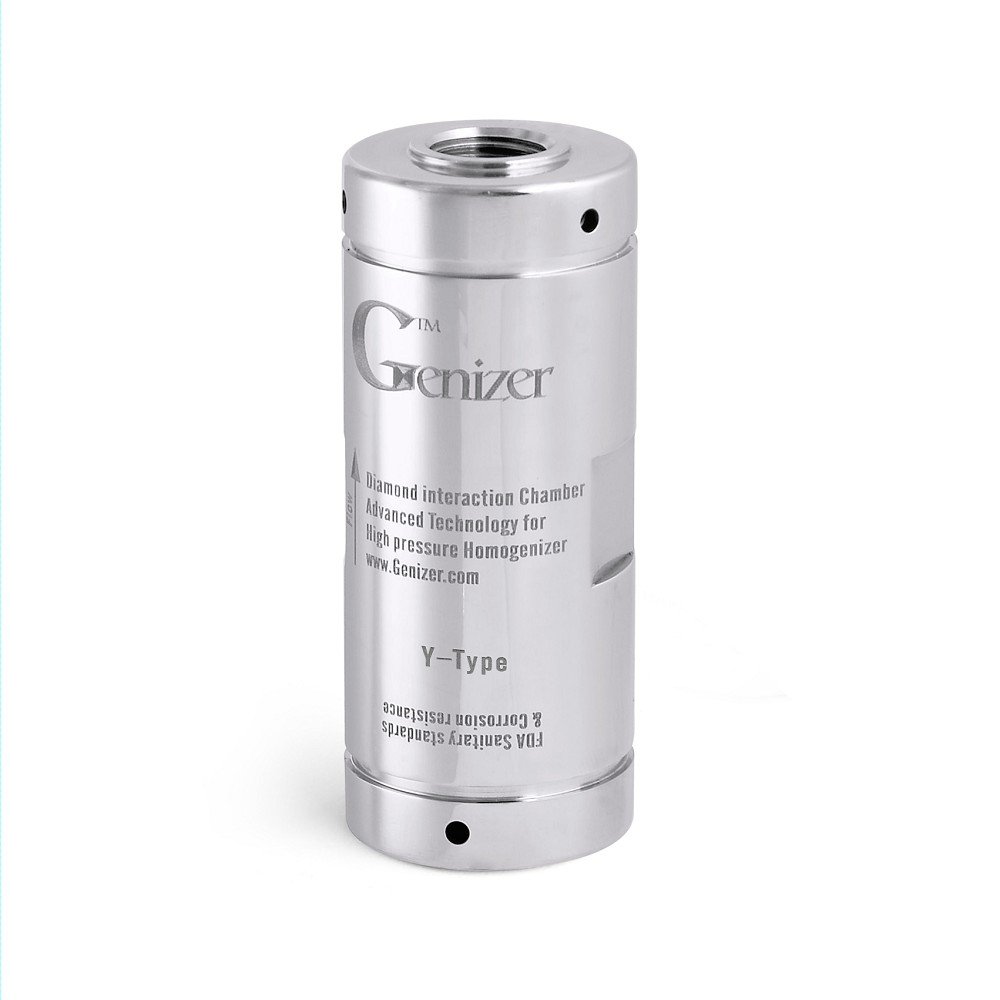

Diamond interaction chamber
Pressure ranges up to 30,000 psi
Capacity: 10 to 30 ml/min@ 30, 000 psi
Power: Manual operations
Minimum sample volume: 2 ml
Spares and tools
Application: Nano emulsions and liposomes

Description

Portable hand driven homogenizer for concept testing up to 30,000 psi.
Low-cost high pressure homogenizer
Portable design delivers the light weight and small dimensions
Convenient hand operation without the need for compressed gas
A better choice for small-scale formulation screening
An alternative to the high pressure homogenizers driven by compressed air

Application:

Nanodispersions, nanoemulsions and nanotube
Cell disruption
Micro/nanoencapsulation in polymers, liposomes and oils
Solid dispersion and suspension, deagglomeration

Performance:

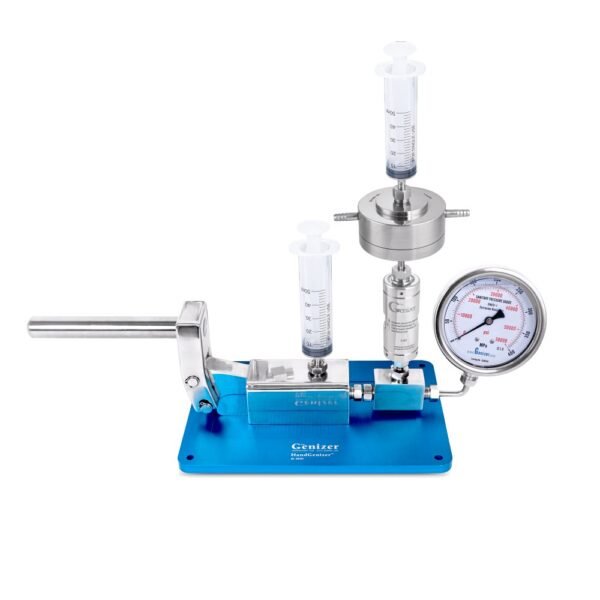

Can be used as a high pressure pump for sanitary applications, such as a liposome extruder.
Change the high pressure gauge with a plug for reducing the dead volume.
Ultra-high pressure up to 30,000 psi. Adjustable 3 stage:
- 1st stage: 10,000 psi;
- 2nd stage: 20,000 psi;
- 3rd stage: 30,000 psi
