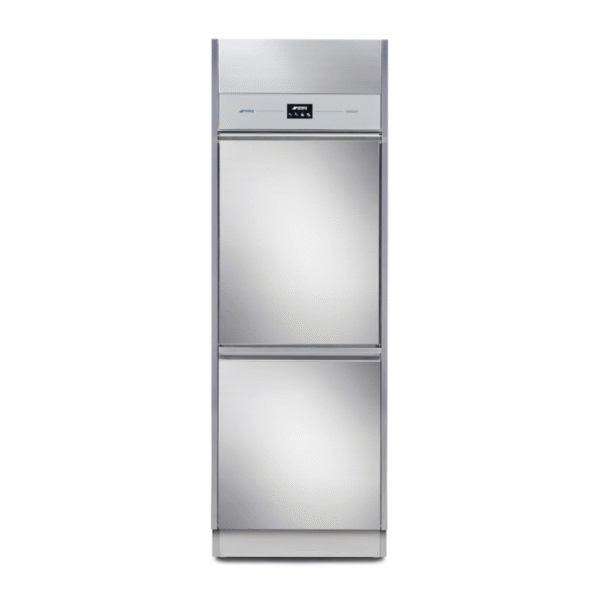

SMEG High Capacity Glassware washer GW6010LX
- Instruments Solutions: Life science
- Life Science sector: Laboratory; Pharmaceutical; Agro-food; Small Laboratories
- Type: Glassware washer (D 650 x W 720 x H 1950)
Technical Features
- Working temperature: Up to 95 °C
- Door: 2 stainless-steel drop-down doors
- Drying system: Yes
- Noise level (dbA): Max. 66 dBA
- HEPA filter: Optional
Programs
- Standard programs stores: 20
- Modifiable Programs: 20
- Program editing: Yes
Electrical Connection
- Electrical connection: 3N AC 400V – 50Hz
- Plug: Not present
- 60 Hz Possibility: Yes, on demand
Hydraulic connection
- Drain pump: Yes, only with wall drain
- Cold water connection: Yes
- Hot water connection: Yes
- Demi water connection: Yes
- Booster pump for demineralized water: Optional
Description
Color touch display
The color TFT touch display on both sides of the machine allows for simple and intuitive daily operation. The compact design of the interface provides the operator with a full range of information, including 20 preset and 20 fully customisable programmes.
Maximum loading flexibility
Maximum loading flexibility is ensured by a wide choice of trolley configurations, allowing all laboratory instrumentation to be accommodated: long and narrow-necked glassware, pipettes, test tubes and large glassware. The presence of the double sliding door prevents cross contamination between the dirty and clean environment.
Detergent Compartment
The machine is equipped with a large detergent compartment that can hold up to four 5-litre canisters and one 1-litre canister, with two peristaltic pumps supplied for automatic product dosing and the possibility of installing up to two additional pumps.
Data recording
USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.
Interface
| Electronic control: | Yes | Traceability: | at least the last 100 executed programs |
| Alarm indicator: | Yes, on the display | Cycle Archive: | Yes |
| Remaining duration display: | Yes | Set of display languages: | IT (Italiano), EN, DE, FR, PT, RU |
| End of cycle indicator: | Yes | Download cycle: | Optional, through LAN connection/ Yes, thorugh RS232 connection/ Yes, with USB pen drive |
Equipments
| Detergent compartment: | Yes, for 3 canisters of 5 liters and one canister of 1 liter | Chemicals dosing: | Optional |
| Peristaltic pump for dosing the liquid neutraliser: | Yes | Detergent level sensor: | Optional |
| Peristaltic pump for dosing the liquid detergent: | Yes | Conductivity sensor: | Optional |
| Peristaltic pump for caustic soda: | Optional | Steam condenser: | Optional |
| Peristaltic pump for defoamer: | Optional | Water softener: | Optional |
| Possibility to install additional peristaltic pump: | Yes, up to 2 | Probe passage for validation: | Optional |
Additional information
| Dimensions | 28.346 × 25.59 × 76.771 in |
|---|---|
| Working Temperature | Upto 95 °C |
| Noise level (dbA) | < 50 dBA |
| Door | 2 stainless-steel drop-down door |
| Washer Chamber Material/External Material | AISI 316L/AISI 304 |
| Drying System | Yes |
