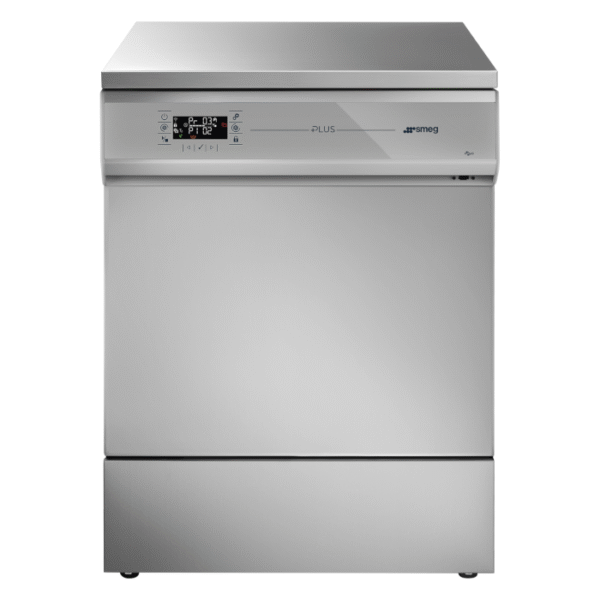

SMEG Glassware washer 60cm GW5260-PC-000
- Instruments Solutions: Life science
- Life Science sector: Laboratory; Pharmaceutical; Agro-food; Small Laboratories
- Type: Glassware washer 60cm
Technical Features
- Working temperature: Up to 95 °C
- Door: 1, stainless-steel drop-down door
- Noise level (dbA): < 50 dBA
- Undercounter installation: Yes/Available
Programs
- Standard programs stores: 20
- Modifiable Programs: 20
- Program editing: Yes
Electrical Connection
- Electrical connection: 3N AC 400V – 50Hz
- Availability monophase version: Yes
- Plug: Not present
- Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
- 60 Hz Possibility: Yes, on demand
Hydraulic connection
- Drain pump: Yes
- Cold water connection: Yes
- Hot water connection: Optional (T4260AC)
- Demi water connection: Yes
- Booster pump for demineralized water: Optional
Additional Versions:
- GW4290-S0-000 – version with second dosing pump for liquid detergent;
- GW4290-0C-000 – version with integrated steam condenser and dispenser for powder detergent
Description
Color touch display
The color touch display enables simple and intuitive daily operation. The compact design of the interface ensures the operator a full range of information, including specific programs for every need. In addition, thanks to the ECO program, it is possible to activate a washing cycle with a lower water and energy impact than traditional cycles.
Data recording
USB input enables convenient and efficient laboratory data recording, as well as immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.
Maximum loading flexibility
Maximum loading flexibility is provided by a wide choice of trolley configurations to accommodate all laboratory instrumentation: long-necked and narrow-necked glasses, pipettes, test tubes, and large glasses.
Complete drying
The machine ensures accurate complete drying, which achieves maximum performance and speed thanks to the automatic door opening.
Interface
| Electronic control: | Yes | Traceability: | at least the last 100 executed programs |
| Alarm indicator: | Yes, on the display | Cycle Archive: | Yes |
| Remaining duration display: | Yes | Download cycle: | Optional, through LAN connection/ Yes, thorugh RS232 connection/ Yes, with USB pen drive |
| End of cycle indicator: | Yes |
Equipments
| Powder detergent entrance: | Yes | Detergent level sensor: | Optional |
| Peristaltic pump for dosing the liquid neutraliser: | Yes | Conductivity sensor: | Optional |
| Peristaltic pump for caustic soda: | Optional | Water softener: | Yes |
| Peristaltic pump for defoamer: | Optional | Acqua Stop: | Optional |
| Possibility to install additional peristaltic pump: | Yes, up to 2 | Probe passage for validation: | Optional |
| Chemicals dosing: | Optional | Cabinet for detergents: | Yes, for 2 canisters of 5l |
Additional information
| Dimensions | 25.196 × 23.622 × 33.464 in |
|---|---|
| Working Temperature | Upto 95 °C |
| Noise level (dbA) | < 50 dBA |
| Door | 1 Stainless-steel drop-down door |
| Washer Chamber Material/External Material | AISI 316L/AISI 304 |
| Drying System | Yes |
