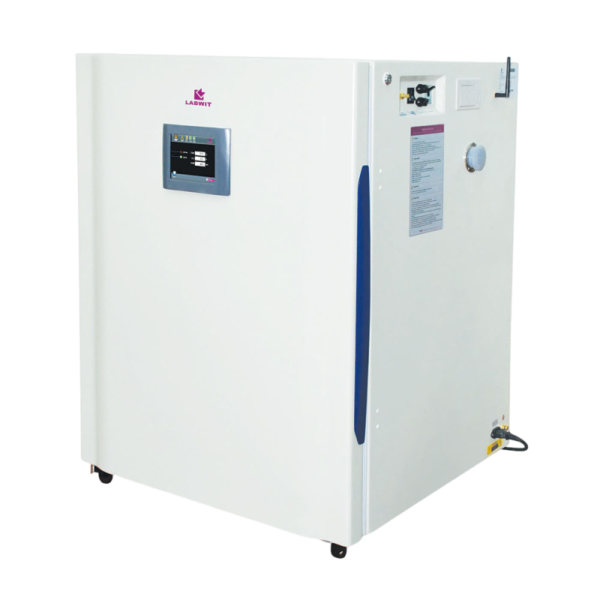

Labwit Direct Heating CO₂ Incubator ZOCR-1150B
LABWIT ZOCR Series CO₂ Incubators have been carefully engineered and proven to provide clean, reliable and easy-to-use environment control to protect your samples and optimise cell growth.
In recent times, CO₂ incubators have become more commonplace in the laboratory for their ability to replicate the growth of mammalian cells and tissues for in vitro fertilisation, animal research and the many clinical outcomes and fields of medical research. By controlling three essential variables of constant CO₂ level, temperature (°C), and relative humidity (RH%), a CO₂ incubator can create a balanced and stable environment for cells to grow and thrive. As a result, a controlled pH level (7.1-7.4), controlled CO₂ level (5%), constant temperature (37°C), and high relative humidity (>95%) are well maintained from there.
| Model | |
|---|---|
| ZOCR-1150B | ZOCR-1150B, 150L, Premium DH CO₂ Incubator, IR Sensor, A+5-60, 0-20% |
| Internal Volume (L) | 150 |
| Temperature | |
|---|---|
| Heating Mode | Direct Heat & Air Jacket |
| Control Method | P.I.D Microprocessor |
| Temperature Range (°C) | Ambient+5 to 60 |
| Temperature Uniformity (°C) | ≤±0.2 @37°C |
| Temperature Accuracy (°C) | ≤±0.2 |
| Ambient Temperature Range (°C) | 10-35 |
| CO₂ | |
|---|---|
| CO₂ Control Method | P.I.D Microprocessor |
| CO₂ Range (% CO₂) | 0-20 |
| CO₂ Accuracy (% CO₂) | ≤±0.2 |
| CO₂ Sensor | IR, Single-Beam, Dual Wavelength, Auto-zeroing |
| Humidity | |
|---|---|
| Humidification Method | Water Pan |
| Humidity Range (RH) | Up to 95% @37°C |
| Humidity Display Resolution (RH) | 1% |
| Contamination Control | |
|---|---|
| Contamination Control Methods | High Temperature 140°C Decon Cycle |
| 0.3 Micron In-line HEPA Filter for CO₂ Injection; Inner Chamber HEPA Filter |
| Controlling system | |
|---|---|
| Control Panel | 5.6’’ TFT Touch Screen |
| Alarms | Low & Over temperature, Low & Over CO₂ Deviation, Door Ajar, Low Gas Supply, All Sensor Failures, Printer Failure |
| CO₂ Tank Backup System | Option, with Low Gas Supply Alarm, Auto Switch |
| Printer | Option, Built-in |
| WiseKonect™ | Option |
| Capacity | |
|---|---|
| Internal Dimensions (WxDxH)(mm) | 603x488x650 |
| Exterior Dimensions (WxDxH)(mm) | 720x710x930 |
| Packing Dimensions (WxDxH)(mm) | 840x830x1100 |
| Net/Gross Weight (Kg) | 120/140 |
| Door Type | Left/Right Reversible |
| Number of Shelves (Std/Max) | 3/10 |
| Max. Load per Shelf (Kg) | 10 |
| Shelves Size (WxD) (mm) | 530×400 |
| Power (W) | 220/240 Volt 50/60 Hz |
| Electricity | 1200W |
| Approval | CE, ISO |
| Accessories | |
|---|---|
| P4001 | WiseKonect™ Data Connection Kit |
| P4002 | Right Hinged Door |
| P4003 | Built-in Printer |
| P4004 | Gas Tank Backup Kit |
| P9033 | Perforated Shelf Plate for ZOCR-1150B |
Description
LABWIT ZOCR Series CO₂ Incubators have been carefully engineered and proven to provide clean, reliable and easy-to-use environment control to protect your samples and optimise cell growth.
In recent times, CO₂ incubators have become more commonplace in the laboratory for their ability to replicate the growth of mammalian cells and tissues for in vitro fertilisation, animal research and the many clinical outcomes and fields of medical research. By controlling three essential variables of constant CO₂ level, temperature (°C), and relative humidity (RH%), a CO₂ incubator can create a balanced and stable environment for cells to grow and thrive. As a result, a controlled pH level (7.1-7.4), controlled CO₂ level (5%), constant temperature (37°C), and high relative humidity (>95%) are well maintained from there.
Touch Screen Panel
Start your complete access
and full control from your fingertips
Integrated
Comprehensive information is available at your fingertips.
User-friendly
Graphic user interface, easy to operate with icons and prompts.
Intelligent
The self-diagnostic alarm system monitors all functions and parameters and prompts the user in case of errors.
Safety Features
▶ Non-volatile memory guarantees data integrity in the event of power interruption.
▶ Over-temperature protection unit: alarms when temperature deviation is detected, and heaters are cut off when the temperature is overshot by 3°C.
▶ CO₂ deviation alarm protects the pH value of the culture media.
▶ CO₂ supply is interrupted upon door opening to avoid unnecessary gas waste.
▶ Audio and visual alarms remind of low supply of CO₂ gas.
▶ Alarms provide optimum protection over all sensor failures.
▶ Over-current and leakage protection.
▶ Lockable outdoor protects biohazard samples from unauthorised access.
▶ CO₂ tank backup system (optional): integrated gas tank switcher allows the connection of two CO₂ gas supplies. When low gas supply in the primary tank is detected, the controller switches automatically to the secondary supply.
 |  |  |
 |  |
Other Features
▶ Outer Door
Right or Left Hinge Reversible. Heated for preventing condensations.
Lockable outer doors protect your samples against unauthorised access, especially when biologically hazardous material is involved.
▶ Humidity Sensor
Ensures continuous monitoring over the humidity level, resolution of display: 1% Passive humidity readout. Easy to dismantle for a high-temperature decon cycle.
▶ Stacking Locator
Corners are pressed for easy locating during stacking.
▶ Shelving
SUS304 electro-polished stainless steel. Anti-tip, easy to dismantle without tools. Perforated, for improving uniformity.
▶ Water Pan
Autoclavable stainless steel water pan heated by controlled base heater to manage humidity and assist humidity recovery.
▶ Access Port
Makes validation easy and provides the user convenience for connecting instrumentation. A rubber stopper is included as standard.
▶ Glass Inner Door
Tempered glass doors allow observations without interference to the inner chamber environment.
